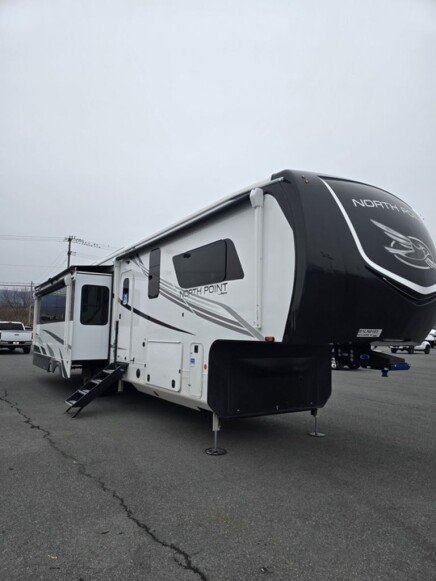

New 2025 JAYCO North Point

Luxury and comfort combine in the Jayco North Point Luxury Fifth Wheel for the most enjoyable camping experience youll ever have. From the minute you leave your home, youll notice the difference with North Points industry-exclusive 5-star handling package. The handling package includes the MORryde Pin Box with a combination rubber isolator and chucking reduction system to help with the front-to-back and side-to-side vibration. The MORryde Rubberized Axle Suspension System provides up to 3 of up/down travel, which is essential to isolating and eliminating road shock. Most competitors systems allow for less than 2 of movement. All Jayco Fifth Wheels are built using 7,000-lb. or 7,400-lb. Dexter axles with Nev-R-Adjust brakes. This braking system eliminates the need for repeated, time-consuming manual adjustments and can greatly increase stopping distance. Dexter Heavy-Duty Shackles with Wet Bolt Fasteners and Bronze Bushings help resist the wear and tear of towing. Jayco also upgrades to heavy-duty 4,000-lb. springs instead of the standard 3,500-lb. springs. The North Point tires are 17.5 H rated 16 ply Uniroyal tires with 4,805-lb. weight rating.

Features may include:

• (3) 40 lb. propane bottles with auto regulator (120 lb. max LP system) 102 in. wide body construction

• 12 in. structural steel I-beam with 10 in. steel drop frame

• 3,000 lb. tow hitch with 4-way pin (N/A 390CKDS)

• Battery disconnect

• Built in sewer hose carrier

• Climate ShieldTM zero-degree tested weather protection:

• 40,000 BTU output furnace

• Double layer fiberglass batt insulation (roof and floor)

• Fully-enclosed and heated underbelly (ducted)

• PEX plumbing, 2 in. block foam and reflective foil Custom automotive-grade vinyl exterior graphics package Digital TV antenna with 5G Wi-Fi extender

• Exterior marine-grade speakers with Bluetooth controller Frameless, dark tinted, safety-glass windows

• Fully enclosed, universal docking center:

• Black tank flush

• Independent satellite wiring

• Quick-connect outside shower

• Selectable water connections

• Whole coach cable hookups

• Winterization and sanitation hookups

• Inverter pre-wire to select outlets

• JayPort system for outside griddle (all floorplans without a standard outside kitchen)

• JaySMARTTM (Safety Markers And Reverse Travel) LED lighting (patented)

• LED exterior lighting package

• Magnum TrussTM XL6TM Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty Painted fiberglass front cap with clear coat and built-in specialty LED lighting

• Pass-through storage with Slam-latchTM baggage doors

• Skirt metal enclosed drop frame

• Stronghold VBLTM aluminum framed and vacuum bond laminated gel coated fiberglass exterior walls (including rear wall and slide room end walls) Under-mounted spare tire

• Water heater bypass

• 5/8 in. tongue-and-groove joined plywood floor decking Bathroom skylight

• Built in spice rack inside kitchen cabinet door (select models)

• Built-in laundry hamper in wardrobe (select models)

• Carbon monoxide and LP detector

• Ceiling fan (select models)

• CPAP prepped bedroom

• Dual USB charging ports throughout

• Extra 120V power outlets in kitchen and slide rooms
